Purpose-Built Hardware

Hopbox Appliances

Dedicated network appliances ranging from high-performance Xeon-based units to compact branch devices — all running Hopbox firmware with SD-WAN, VPN, firewall, and IPS built in.

View Specifications Explore Models

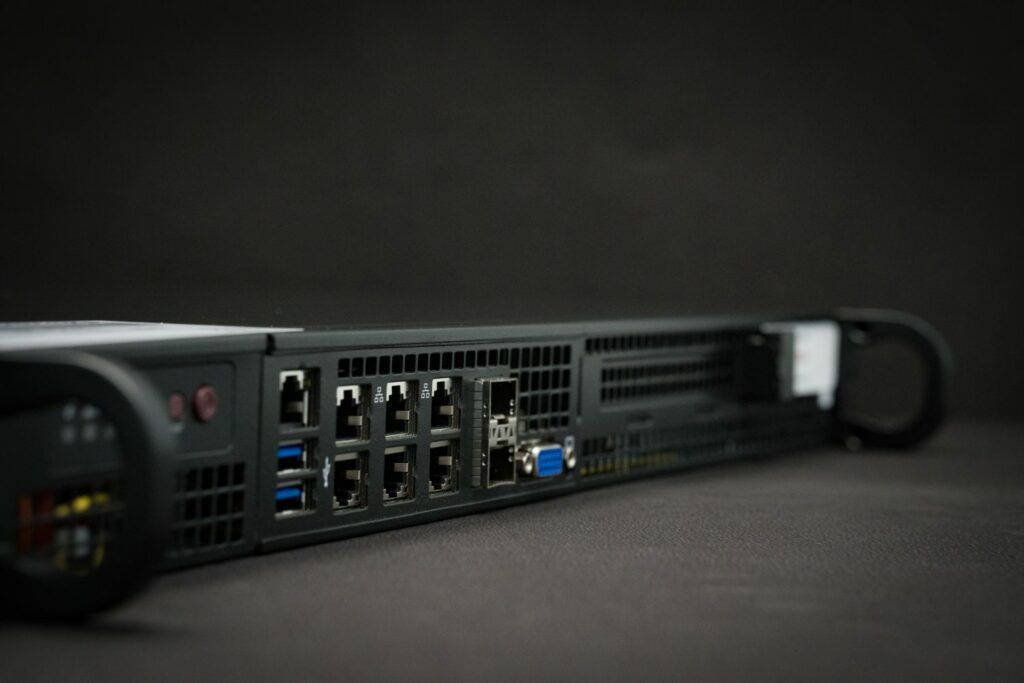

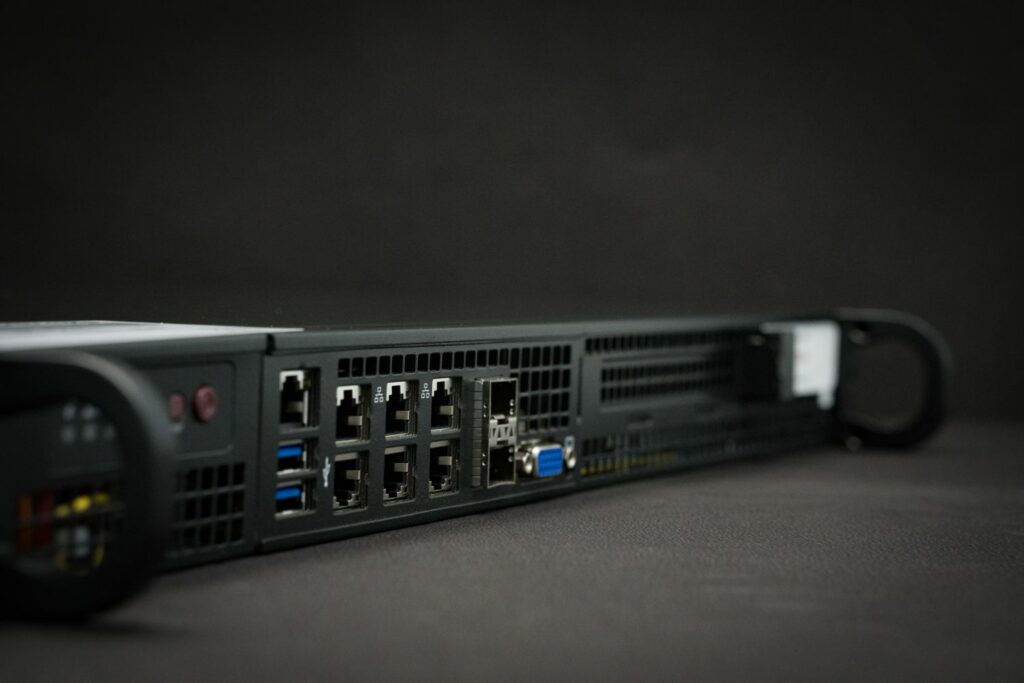

Hopbox XD
Headquarters / Data Center

Hopbox XD

The new Hopbox XD has enough muscle to connect, secure and optimise your medium-sized high-performance networks.

Firmware Features

  • SD-WAN (Failover / Loadbalance / Smart Preference)
  • Dual-Active VPN Tunnels with sub-second failover with OSPF & BFD
  • FEC over VPN to minimise Packet Loss over Lossy links
  • Layer 7 Firewall
  • Intrusion Prevention System
  • P2P (Torrent) Blocking
  • SYN Flood Protection
  • Proxy / Web Access Control with Charcoal

Hardware Specs

CPU Intel Xeon CPU 2.2 Ghz x 4 cores x 2 HT
Encryption AES-NI Acceleration
RAM 8 GB (upgradable to 256 GB)
SSD 32 GB NVMe
Network Ports 6 x GbE RJ45, 2 x 10GbE SFP+
Expansion 2/4 x GbE, 2/4 x 10GbE SFP+ (Optional)
Chassis 1U Rack Appliance
Request Quote

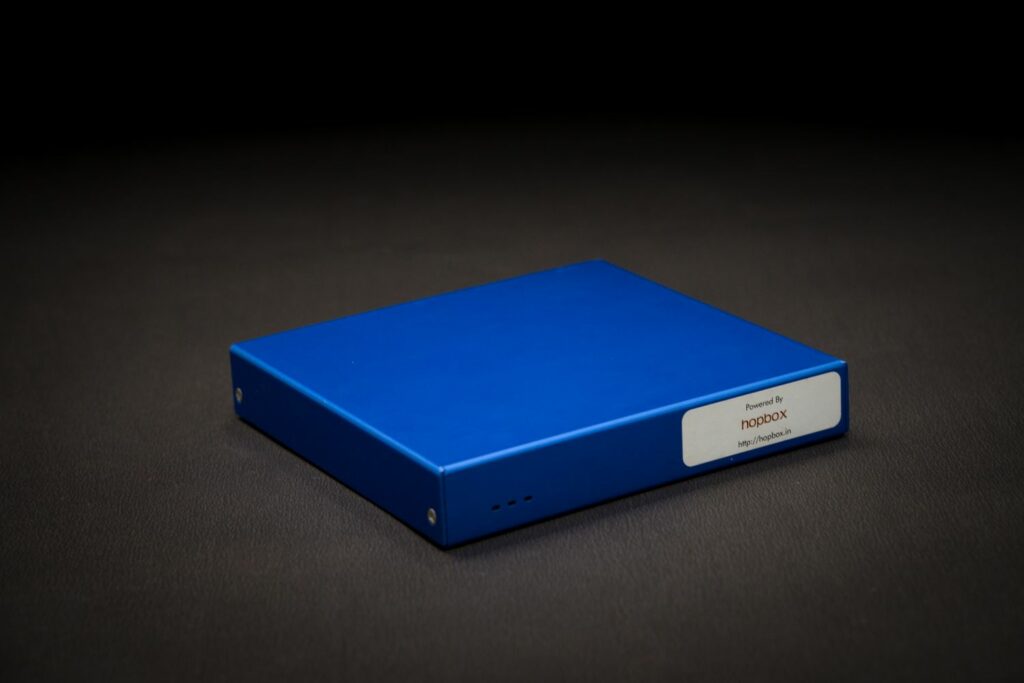

Hopbox APU
Large Branch Office

Hopbox APU

The new Hopbox APU is well suited for Medium spokes and small Hub sites.

Firmware Features

  • SD-WAN (Failover / Loadbalance / Smart Preference)
  • Dual-Active VPN Tunnels with sub-second failover with OSPF & BFD
  • FEC over VPN to minimise Packet Loss over Lossy links
  • Layer 7 Firewall
  • Intrusion Prevention System
  • P2P (Torrent) Blocking
  • SYN Flood Protection
  • Proxy / Web Access Control with Charcoal

Hardware Specs

CPU 64 bit AMD Embedded GX-412TC, 1 GHz
Encryption AES-NI Acceleration
RAM 4 GB
SSD 16 GB mSATA
Network Ports 4 x GbE RJ45
USB 2 x USB 3.0
LTE 1 x SIM slot (Optional)
Request Quote

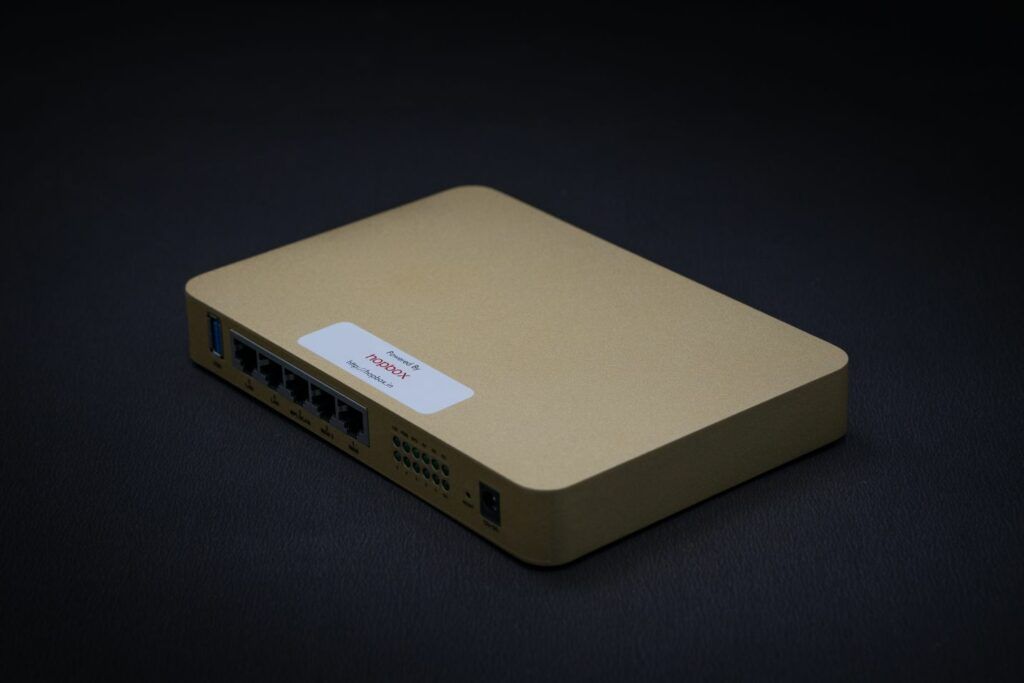

Hopbox MT64R512
Standard Branch

Hopbox MT64R512

High-performance compact router for standard branch connectivity.

Firmware Features

  • SD-WAN (Failover / Loadbalance)
  • Dual-Active VPN Tunnels with sub-second failover with OSPF & BFD
  • FEC over VPN to minimise Packet Loss over Lossy links
  • Layer 7 Firewall
  • P2P (Torrent) Blocking
  • SYN Flood Protection
  • Proxy / Web Access Control with Charcoal
  • HTTPS Interception

Hardware Specs

CPU 880 Mhz Quad-Core
RAM 512 MB
Flash 64 MB NOR
Expansion SD-Card, SATA
Ethernet 5 x Gigabit (2x WAN, 3x LAN)
Power 12V DC, 1A
Request Quote

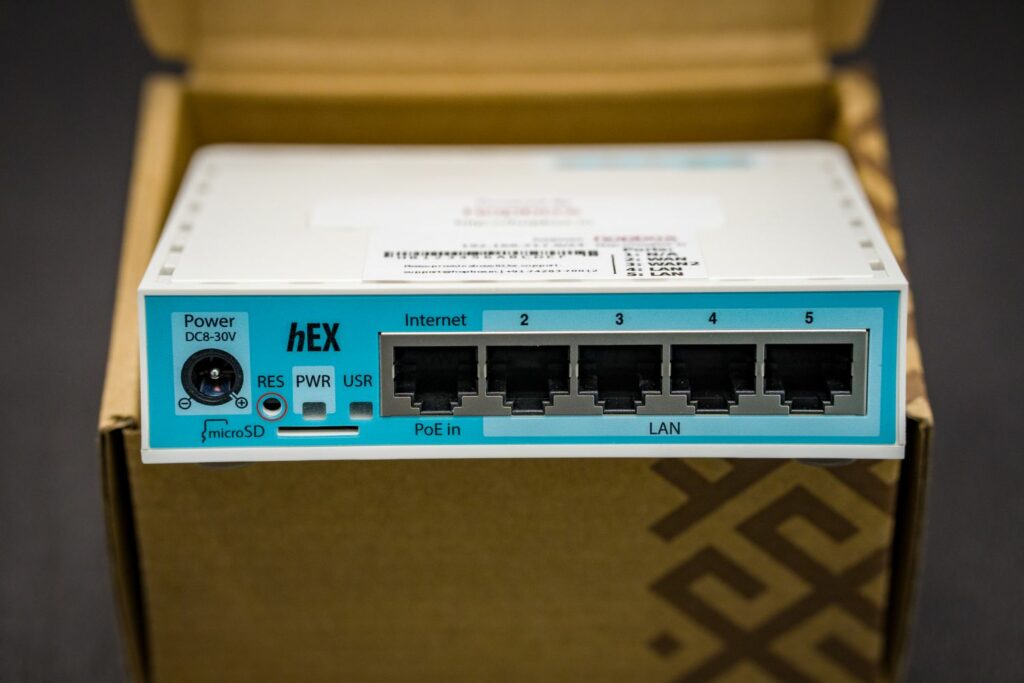

Hopbox R750
Small Branch / Kiosk

Hopbox R750

Compact and cost-effective solution for small branch offices and kiosks.

Firmware Features

  • SD-WAN (Failover / Loadbalance)
  • Dual-Active VPN Tunnels with sub-second failover with OSPF & BFD
  • FEC over VPN to minimise Packet Loss over Lossy links
  • Layer 7 Firewall
  • P2P (Torrent) Blocking
  • SYN Flood Protection
  • Proxy / Web Access Control with Charcoal
  • HTTPS Interception

Hardware Specs

CPU 880 Mhz Quad-Core
RAM 256 MB
Flash 16 MB NAND
Expansion SD-Card
Ethernet 5 x Gigabit (2x WAN, 3x LAN)
Power 24V DC, 800mA
Request Quote
Deployment Scenarios

Deployment Scenarios

Retail Chain Rollout

Deploy compact R750 or MT64R512 appliances to hundreds of stores with zero-touch provisioning and central firmware management.

Corporate Headquarters

Install XD appliances with 10GbE connectivity at HQ for high-throughput SD-WAN aggregation and security processing.

Warehouse & Distribution

APU-based appliances provide reliable multi-link WAN, VPN, and firewall for logistics hubs with moderate traffic loads.

Find the Right Appliance

Choose from our range of purpose-built hardware or contact our team for custom deployment planning.

Contact Sales
